GraphTrust

1 Research question and significance

Question. To what extent does typed, whole-identity graph analysis improve detection, ranking, explanation and remediation of multi-hop paths to critical cloud resources compared with four precisely defined IAM-audit baselines?

Zero Trust Architecture rejects implicit trust based on network location and requires access decisions to consider subjects, assets, resources and policy context (NIST, 2020, 2023). IAM reviews that stop at direct grants can miss a low-privilege identity whose group membership, role assumption, service impersonation or deployment authority creates transitive reachability. Graph-based attack-path and IAM analysis already exists — Principal Mapper, BloodHound OpenGraph, TAC and IAMPERE are important neighbours (NCC Group, 2022; SpecterOps, 2026; Hu et al., 2023a,b) — so GraphTrust does not claim to invent IAM graphs. Its contribution is a platform-neutral, truth-separated benchmark and controlled comparison combining typed path ranking under an explicit analyst budget, decomposed risk explanations and workflow-constrained remediation.

Three hypotheses were pre-specified in commit b226203 before the final evaluation runs:

• H1 whole-identity analysis increases recall of planted transitive scenarios over direct and privileged-only audits;
• H2 typed semantics improve top-ranked relevance over untyped traversal at fixed review budgets;
• H3 cost-aware cuts reduce exposure with fewer or lower-cost raw IAM changes while preserving protected workflows.

Table 1. Related-work boundary. GraphTrust's claim is a controlled evaluation protocol, not invention of identity graphs.

System	Multi-hop	Cross-platform	Truth	Ranking	Workflow check
PMapper	Yes	AWS	No	No	No
Access Analyzer	Partial	AWS	No	No	No
BloodHound OpenGraph	Yes	Yes	No	Limited	Guidance
TAC/IAMVulGen	Yes	AWS	Synthetic	Detection	No
IAMPERE	Yes	AWS	Synthetic+real	Repair	Repair
GraphTrust	Yes	Normalized	Paired truth	K-budget	Yes

2 Method

2.1 SEIB-2026 benchmark and experimental matrix

SEIB-2026 generates three enterprise profiles — SaaS scale-up, regulated finance and global hybrid — rather than uniformly random graphs. Each graph contains departments, correlated group and role assignment, human and non-human identities, policies, repositories, pipelines, secrets and multi-cloud resources. Twelve scenario families inject documented dangerous paths and hard negatives; paired variants share the same clean base graph, so changes in detection are attributable to the injected condition.

The pre-specified design crosses 3 profiles × 2 scales × 5 held-out seeds × 3 variants × 5 methods = 450 planned immutable runs. Confirmatory evidence is the complete 225-run small-scale half: 30 injected graph units for detection and 15 clean controls for unmatched-finding burden. Each run retains data/configuration hashes, revision, environment, outputs, timings and checksums; truth is joined only after inference. Uncertainty uses 10,000 paired graph-level bootstrap resamples with (profile, seed) clusters, Friedman tests and Holm-corrected paired Wilcoxon follow-ups. Reachability is potential exposure, not proof of exploitation.

Small graphs use a 250,000-path cap. Local medium diagnostics at caps from 250,000 to 100 exposed impractical repeated source–target search cost and are excluded. A frozen bounded follow-up and three high-RAM, checkpointed Colab notebooks exist but were not completed in authenticated Colab; no medium/large performance result is claimed.

2.2 Graph semantics, scoring and baselines

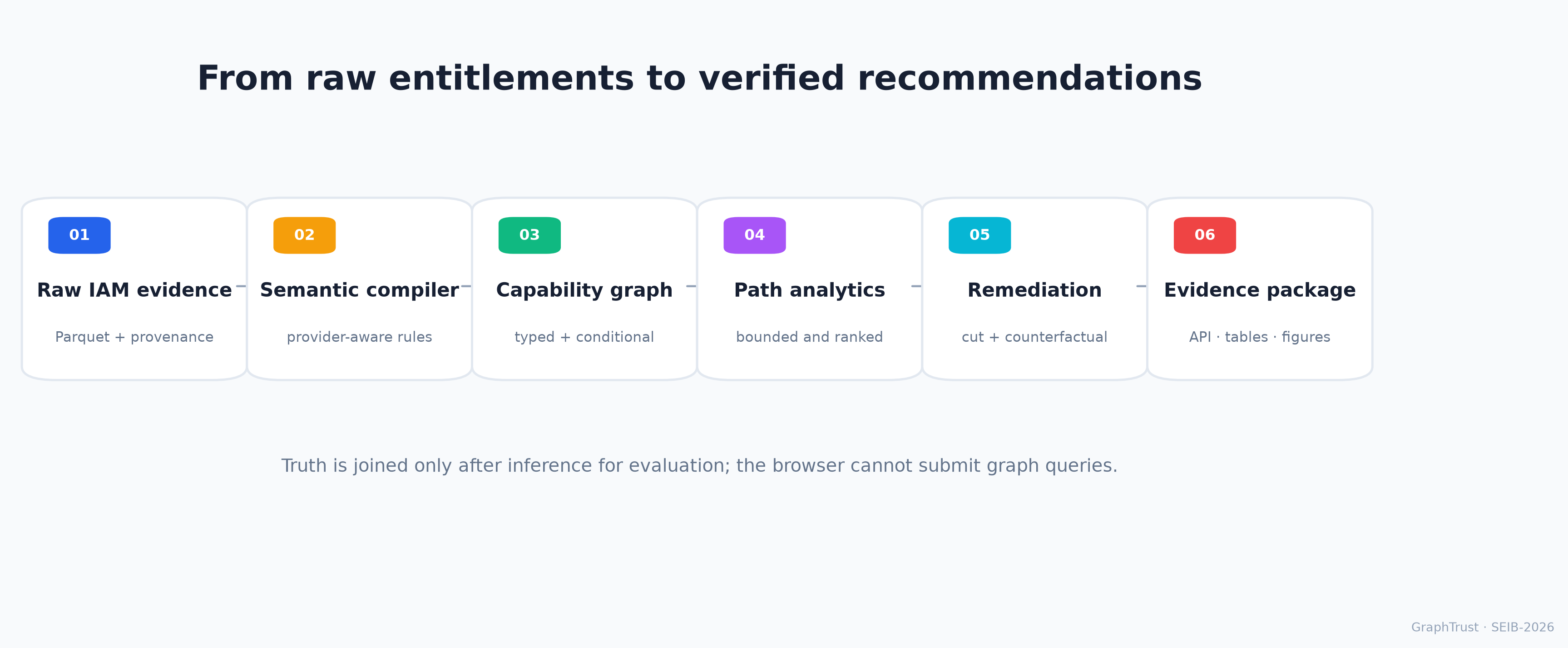

Raw IAM evidence is compiled into effective capability edges that retain the semantic rule and source-evidence identifiers. Conditions use three states (true, false, unknown); unknown conditions are kept conservatively and labelled. Paths are simple, bounded to eight transitions and limited by explicit per-source and global expansion caps. For a path $p$ ending at asset $t$,

$$R(p) = C(t)\, S(p)\, \exp\!\left[-\sum_{e \in p} \big(-\log x_e + \tau_e + \kappa_e\big)\right],$$

where $C$ is normalized asset criticality, $S$ starting-control weakness, $x_e$ relative exploitability, and $\tau_e, \kappa_e$ typed-transition and condition penalties. Values are ordinal ranking parameters, not breach probabilities. The Zero Trust Risk Index (ZTRI) combines critical reach, best path, path diversity, blast radius and control weakness; every component stays visible.

Baselines: B0 direct (one-hop grants), B1 privileged-only (typed traversal from pre-labelled privileged starts), B2 untyped graph (unit-cost reachability) and B3 native scope (direct, group and provider-native relationships). This avoids the inaccurate claim that commercial IAM products inspect only direct permissions — AWS Access Analyzer, for example, uses automated reasoning for supported resource and policy scopes (Amazon Web Services, 2026).

2.3 Counterfactual remediation

Removable raw relationships receive modeled business costs; mandatory edges and required workflows are protected. Four methods — degree greedy, risk greedy, weighted minimum cut and iterative CP-SAT path hitting set — receive the same target. The verifier removes the proposed raw edges and every effective transition they support, reruns bounded reachability, and checks capability-specific protected workflows. Counterfactual verification records that the plan was applied and workflows remained reachable; target attainment is reported separately, by comparing achieved weighted reduction with the requested threshold. Recommendations never modify live permissions.

3 Results

3.1 Detection and ranking

The final small-scale matrix contains 225 checksum-verified runs. On injected graphs:

Method	Risky-identity recall	Scenario recall	NDCG@10
B0 Direct	0.000	0.000	0.000
B1 Privileged-only	0.000	0.000	0.000
B3 Native scope	0.392	0.392	0.009
B2 Untyped graph	0.758	0.758	0.002
GraphTrust	0.758	0.758	0.125

(Table assembled from §3.1 prose; NDCG@10 for B0/B1 from the repo's generated results.tex.)

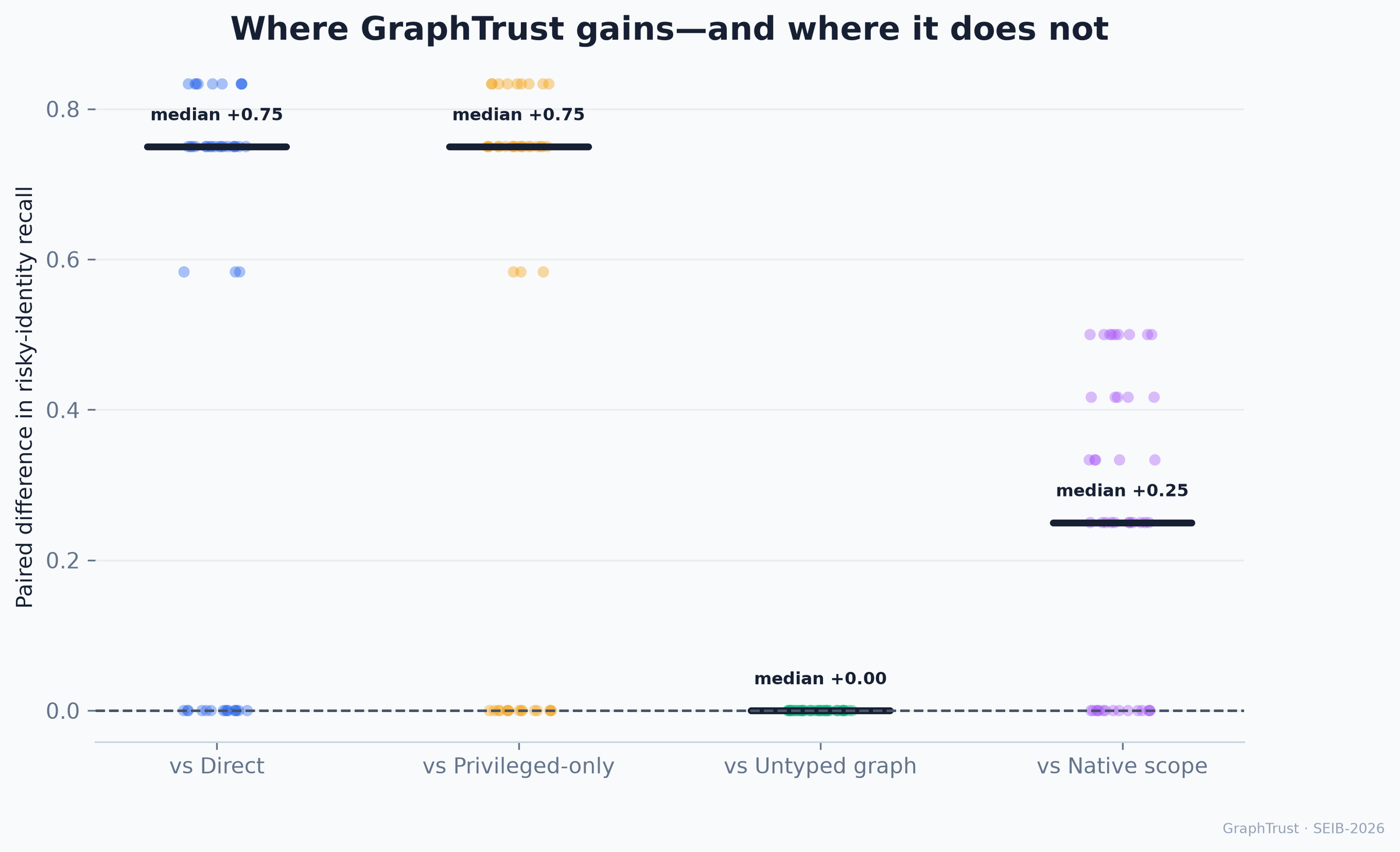

H1 is supported against the narrow audit baselines but not against untyped whole-graph reachability. The separation appears in ranking: NDCG@10 0.125 for GraphTrust versus 0.002 for untyped traversal and 0.009 for native scope. The review-budget reanalysis supplied with this revision reports exact-path recall@10 of 0.189 versus 0.0026 for untyped traversal, precision@10 of 0.103 versus 0.0033, and MRR 0.0549 versus 0.0053 — typed conditions and transition costs concentrate useful evidence near the top even when exhaustive recall ties. Exhaustive exact-path recall was 0.729 for GraphTrust versus 0.765 for untyped traversal; the paired difference was −0.036 (95% CI [−0.049, −0.023]). On clean controls GraphTrust produced 13,786.9 unmatched paths per 1,000 identities, close to untyped traversal at 13,890.0. An unmatched synthetic path is not necessarily a real false alarm, but the volume shows why reachability must be ranked and reviewed rather than treated as an incident list.

Paired differences make the boundary explicit. Against untyped traversal the risky-identity-recall difference was +0.000 (95% bootstrap CI [+0.000, +0.000]), while the NDCG@10 difference was +0.123 (95% CI [+0.083, +0.164]). Five-method Friedman tests gave $p = 5.34\times10^{-25}$ for risky-identity recall and $p = 3.37\times10^{-13}$ for NDCG@10. Inferential tests use the enterprise graph, not each reported path, as the independent paired unit.

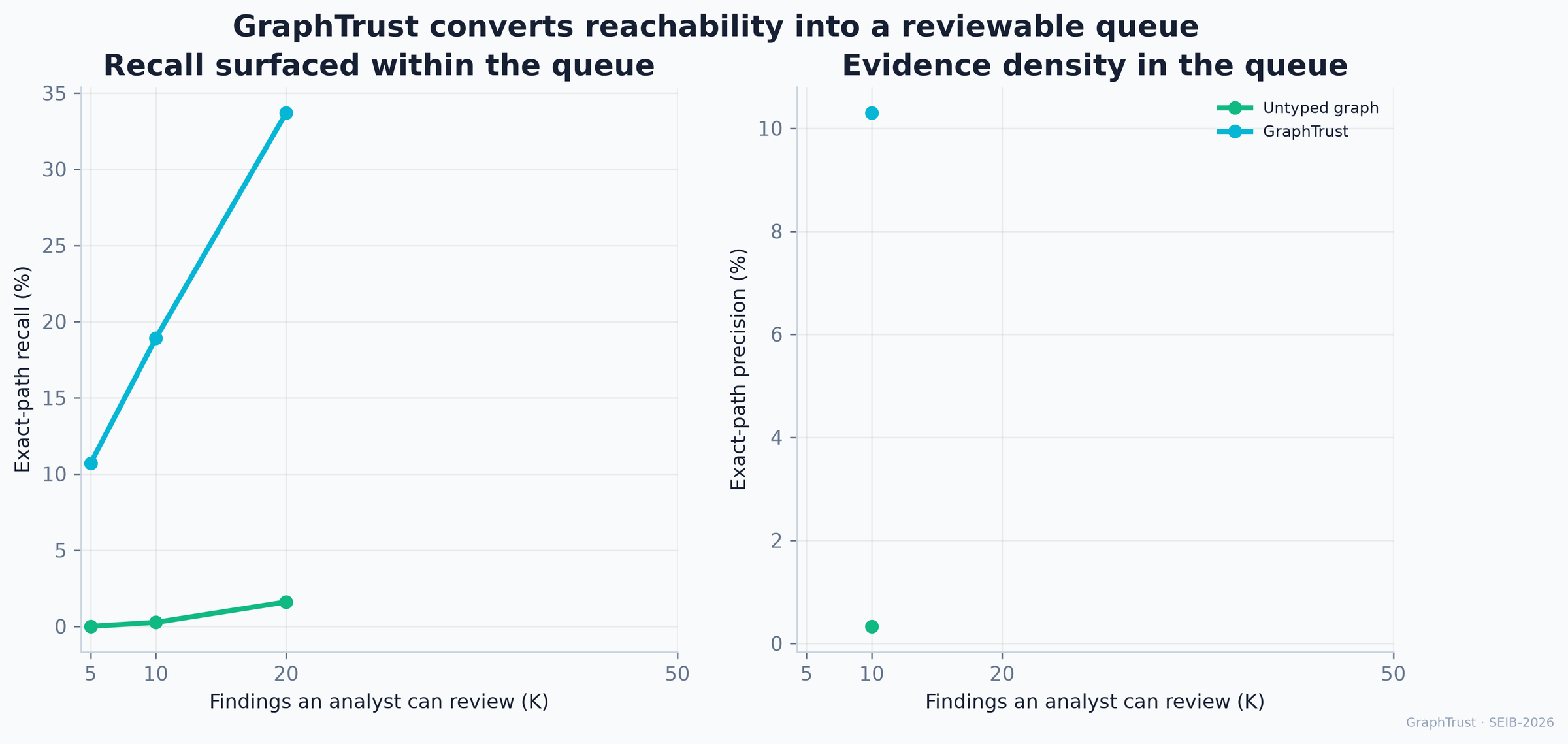

Figure 2: The primary operational endpoint is reviewable evidence, with path-depth results reported separately from the confirmatory aggregate.

3.2 Remediation and scalability

A declared GitHub Actions follow-up replicated remediation across 15 independent (profile, seed) organizations. Weighted minimum cut reduced modeled exposure by 97.71% on average (cluster-bootstrap 95% CI [97.48%, 97.95%]) using 28.13 mean raw IAM changes at modeled cost 22.96 and mean runtime 3.62 seconds (Table 2 gives 3.37 s — see flags). All 15 plans attained the 95% target, passed post-application graph recompilation and preserved every encoded workflow. At the 95% request, risk greedy achieved 87.06% mean reduction, constraint generation 81.00% and degree greedy 73.33%; their counterfactuals and workflows verified even when the requested weighted target was not attained. Weighted min-cut returns one unique plan per graph across the five threshold checks, so inference uses $n = 15$, not the 75 repeated CSV rows.

Table 2. Replicated remediation at the 95% requested reduction (15 independent organizations). Verification and target attainment are separate outcomes.

Method	Achieved	Cost	Changes	Runtime
Weighted min-cut	97.71%	22.96	28.13	3.37 s
Risk greedy	87.06%	7.55	11.33	0.56 s
Constraint generation	81.00%	245.31	112.60	123.37 s
Degree greedy	73.33%	1430.92	877.20	449.25 s

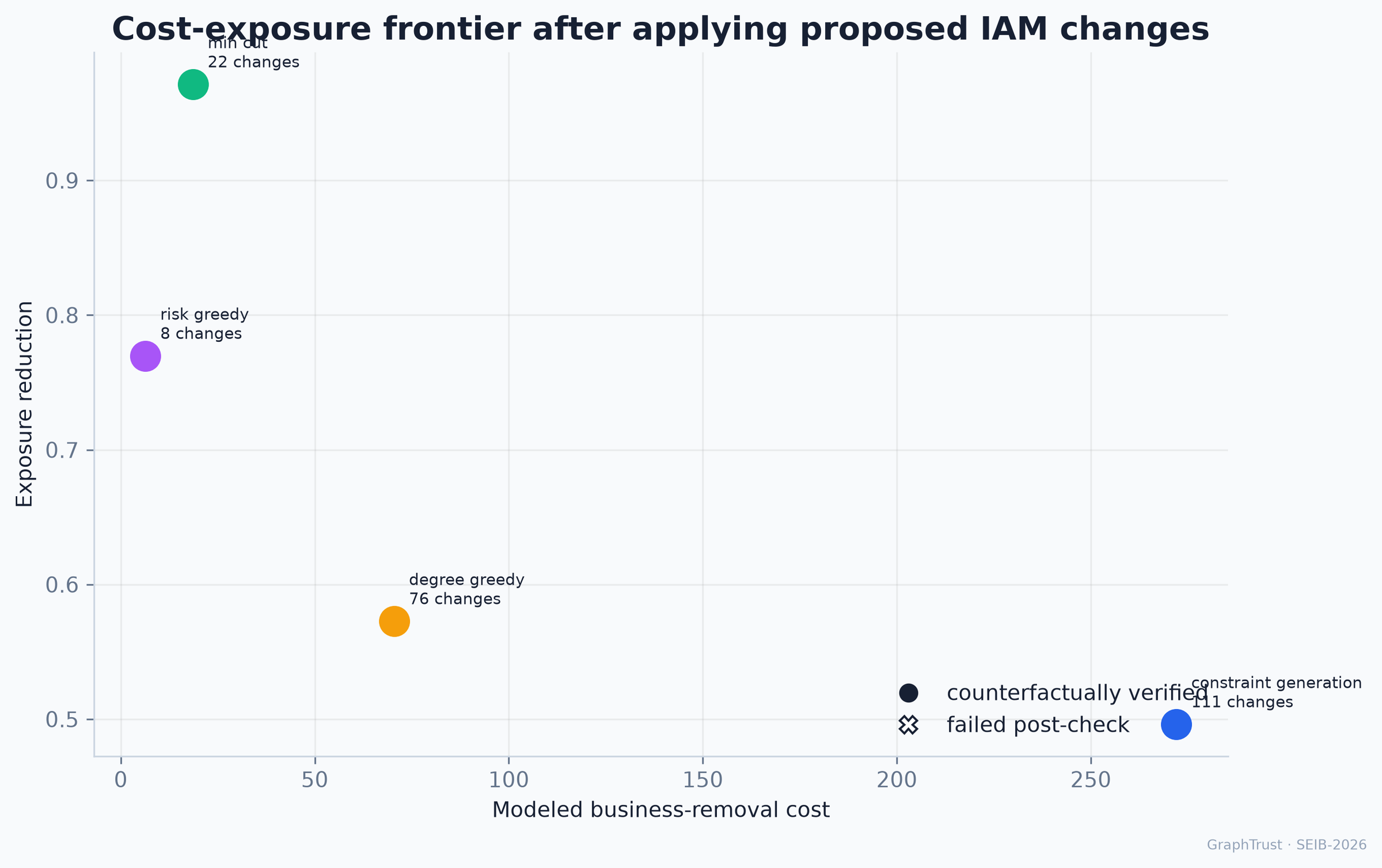

Figure 3: Operational trade-offs are reported together with post-application verification and resource use.

4 Limitations and threats to validity

Synthetic structure does not establish real-world prevalence. Injected truth may favour aligned methods, while unlabelled plausible paths lower measured precision. Weights, removal costs, asset labels and protected workflows are generated assumptions. Provider normalization omits some policy exceptions, sessions, denies and temporal conditions; bounded top-K search can omit paths. Three profiles are not a representative company sample. The frozen depth follow-up contains no one-hop planted risk, so its direct-audit zero is benchmark-conditional. Weighted min-cut solves a different objective from the path-count constraint generator, and target attainment must not be inferred from counterfactual verification alone. Reachability is potential exposure, not intent, exploit success or incident probability.

5 Conclusion and impact

In SEIB-2026, whole-identity reachability reveals transitive paths missed by direct and privileged-only audits. Untyped traversal finds much of the same attack surface, but typed semantics improve the concentration of relevant evidence under a finite analyst budget, preserve hop-level provenance and support explanations. Across 15 frozen organizations, weighted min-cut remediation reduced modeled exposure by 97.71% on average while preserving every encoded workflow; counterfactual recompilation maps choke points back to raw IAM changes and verifies their modeled effect. GraphTrust therefore complements provider-native IAM tools; it is not autonomous enforcement evidence or a claim of universal recall superiority.

AI use transparency statement

OpenAI Codex assisted with interpreting the project specification, implementing and reviewing code, diagnosing scale and verification defects, running local automated experiments, generating figures and editing the brief. The author directed the research question and remains responsible for understanding the method, reviewing every claim, verifying citations and submitting the work. Synthetic data are produced by deterministic repository code; no real company or personal IAM data were used. Numerical claims are generated only from checksum-verified run artifacts or are explicitly labelled as the operator's review-budget audit reanalysis in docs/audit_recalculation_notes.md. AI was not used to fabricate citations, experimental outcomes, collaborators or human review. The public Docker workflow builds and starts both services with health checks; the three large Colab notebooks were prepared but not executed.

Appendix A — Reproducibility and experiment matrix

The repository pins Python dependencies, provides Docker and Compose definitions, and stores three profile-specific Colab notebooks with high-RAM gates, resume checkpoints and receipts. The complete design is 3 × 2 × 5 × 3 × 5 = 450 planned small/medium runs, plus three large profile launches at one held-out seed. The completed evidence set is 225/225 small detection runs plus a 15-organization cloud follow-up with 1,350 depth rows and 300 remediation checks; 225 medium runs and all three authenticated Colab receipts remain pending. Immutable run IDs derive from the dataset checksum, resolved configuration, git commit and method. The final report treats (profile, seed) as the independent cluster and emits docs/evidence/evidence_manifest.csv; a traceability validator rejects missing or corrupt artifacts before report generation. Figures are exported as SVG and 300-dpi PNG and retain source run IDs.

References

• Amazon Web Services. (2026). IAM Access Analyzer concepts and findings. https://docs.aws.amazon.com/IAM/latest/UserGuide/access-analyzer-concepts.html
• SpecterOps. (2026). BloodHound: Six degrees of domain admin. https://github.com/SpecterOps/BloodHound
• Csárdi, G., & Nepusz, T. (2006). The igraph software package for complex network research. InterJournal, Complex Systems, 1695.
• Hagberg, A. A., Schult, D. A., & Swart, P. J. (2008). Exploring network structure, dynamics, and function using NetworkX. In Proceedings of the 7th Python in Science Conference (pp. 11–15).
• NCC Group. (2022). Principal Mapper (PMapper). https://github.com/nccgroup/PMapper
• National Institute of Standards and Technology. (2020). Zero trust architecture (Special Publication 800-207). https://doi.org/10.6028/NIST.SP.800-207
• National Institute of Standards and Technology. (2023). A zero trust architecture model for access control in cloud-native applications in multi-cloud environments (Special Publication 800-207A). https://doi.org/10.6028/NIST.SP.800-207A
• Hu, Y., Wang, W., Khurshid, S., McMillan, K. L., & Tiwari, M. (2023). TAC/IAMVulGen and related permission-flow-graph IAM analysis, discussed in the IAMPERE paper. https://spark.ece.utexas.edu/pubs/ASE-23-yang.pdf
• Hu, Y., Wang, W., Khurshid, S., McMillan, K. L., & Tiwari, M. (2023). Fixing privilege escalations in cloud access control with MaxSAT and graph neural networks (IAMPERE). In Proceedings of the 38th IEEE/ACM International Conference on Automated Software Engineering. https://spark.ece.utexas.edu/pubs/ASE-23-yang.pdf
• Perron, L., Didier, F., & Gay, S. (2023). The CP-SAT-LP solver. In 29th International Conference on Principles and Practice of Constraint Programming (pp. 3:1–3:2). Schloss Dagstuhl. https://doi.org/10.4230/LIPIcs.CP.2023.3
• Sheyner, O., Haines, J., Jha, S., Lippmann, R., & Wing, J. M. (2002). Automated generation and analysis of attack graphs. In Proceedings of the 2002 IEEE Symposium on Security and Privacy (pp. 273–284). https://doi.org/10.1109/SECPRI.2002.1004377
